When a certain fluid pressure is reached, the pop up type rotating cleaning nozzle is automatically extended from the enclosure. These free-spinning rotating nozzles can be installed flush in the tank wall. They are also suitable for cleaning pipes and for applications that use foam. They are of particular interest for applications in the food and beverage industry as well as for the pharmaceutical and chemical industry.
Granulator cleaning Fluidized bed Reactor Drying tower telescopic cleaning rotary nozzle Telescopic rotary cleaning ball
Telescopic cleaning ball Drying tower telescopic cleaning ball Telescopic canister Pipeline telescopic cleaning Telescopic cleaning ball
Retractable CIP Spray Nozzles
| Model | retractable CIP spray nozzles |
| Material | 304ss |
| Stroke length | 30mm, 50mm, or 100mm |
| Connection | 1 1/2" clamp (50.5mm) |
| Application | cleaning of tanks or pipe, i.e. spray dryer, fluid bed dryer, etc |
| Pressure | 1-3 bar |
| Min. pressure | 0.8 bar |
| Filtration |
line strainer with a mesh size of mesh |
Some important features at a glance:
- low wear PEEK body
- slide bearing
- easy to maintain
- drainable
- designed for the food Industrie
retractable spray nozzle common application:
- Spray dryer
- Fluid bed dryers
- Granulator
- Pipe

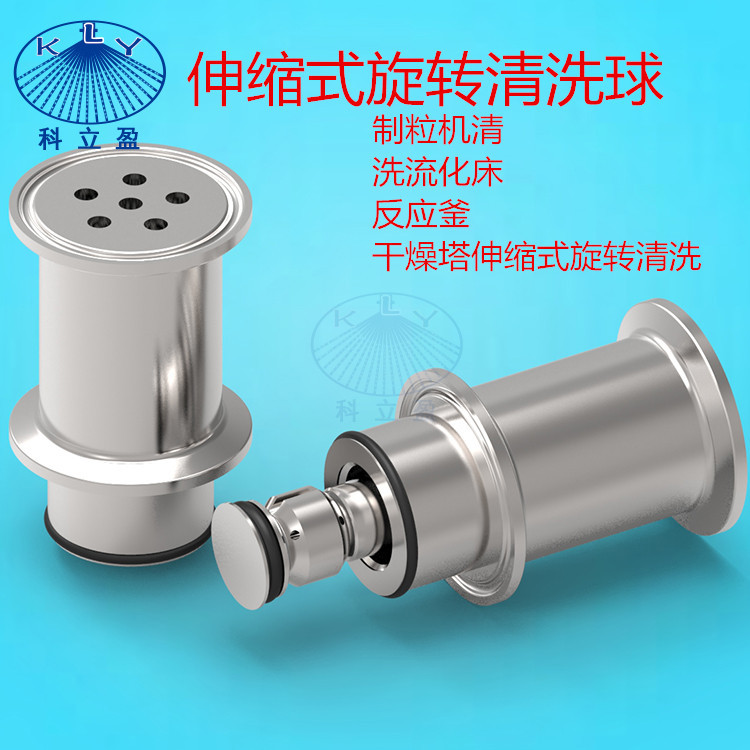

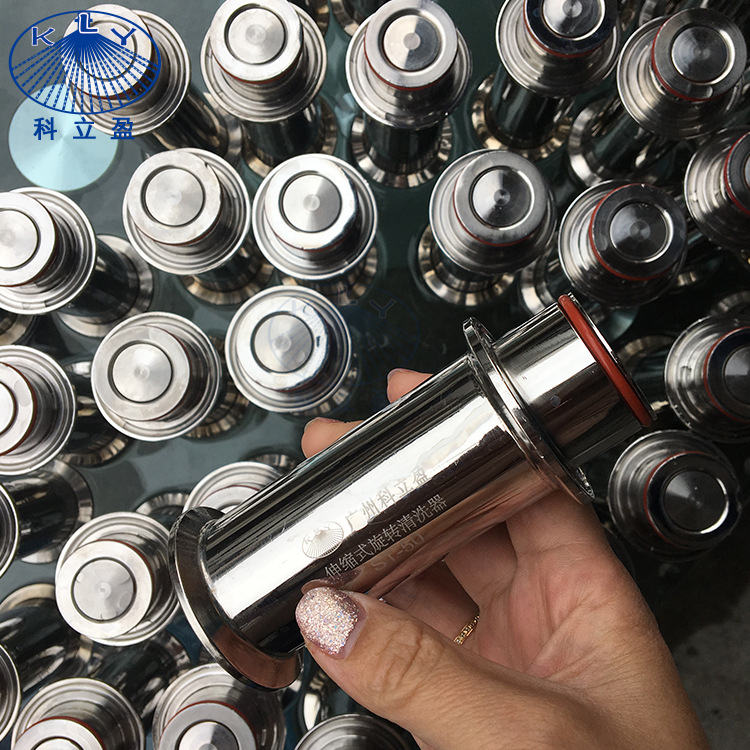

Product Photo:
Performance Data:
Dimension:
Application:
伸缩式旋转清洗球清洗效果：
Telescopic rotary cleaning ball application field:
Used in pharmaceutical, food and beverage, chemical and other industries, specifically for granulators, drying towers, fluidized beds, pipeline cleaning, especially suitable for occasions where cleaning rods and cleaning heads cannot be placed in cleaning materials, cleaning corners, pipes, etc. Cleaning. The drying tower is cleaned with a telescopic rotary cleaning ball. The cleaning effect is very good, and the rotary cleaning has no dead angle.

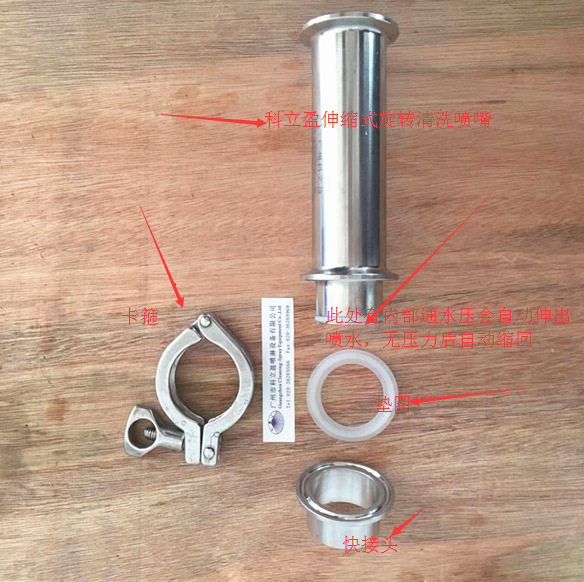

pop up whirly retractable spray nozzle,Accessories for telescopic rotary cleaning ball installation:
pop up whirly retractable spray nozzle,telescopic rotating cleaning ball Installation diagram：
Tank cleaning reactor cleaning nozzle
