    High pressure ibc washer，ibc cleaning equipment,tote tank cleaner system,chemicals tank washing system






    Model Semi-automatic IBC tote washer
    Spray angle 360 °
    Material  stainless steel
    Max. Pressure  150 bar
    Voltage 380V (or on request)
    Voltage of IBC tote cleaning head 24V DC
    Temperature  0-60 °C
    Configuration high pressure pump and motor, water tank , filter, control box, ibc cleaning nozzle, hose, etc
    Application Rinsing and cleaning of IBC tote




    Design feature of ibc tote cleaning nozzle:

    MD series are driven by the motor with external gear and provides 360° impact indexed coverage for the cleaning of the inside of tanks and process vessels.



    1. Using dynamic seal at leakage point to reduce leakage,only 3% leakage, thus save cleaning fluid.

    2. The nozzle have a unique steady flow design which can make the jet be more concentrated, greater impact.

    3. Driven by external motor, thereby reducing the pressure loss of water flow, resulting in higher water impact.

    4. Compact build ideal for small openings



    ibc cleaning equipment application:

    Model MD series is a highly versatile machine and is applicable in most all types of tanks for process, storage, and transportation. It can be used as a portable unit or permanently mounted.

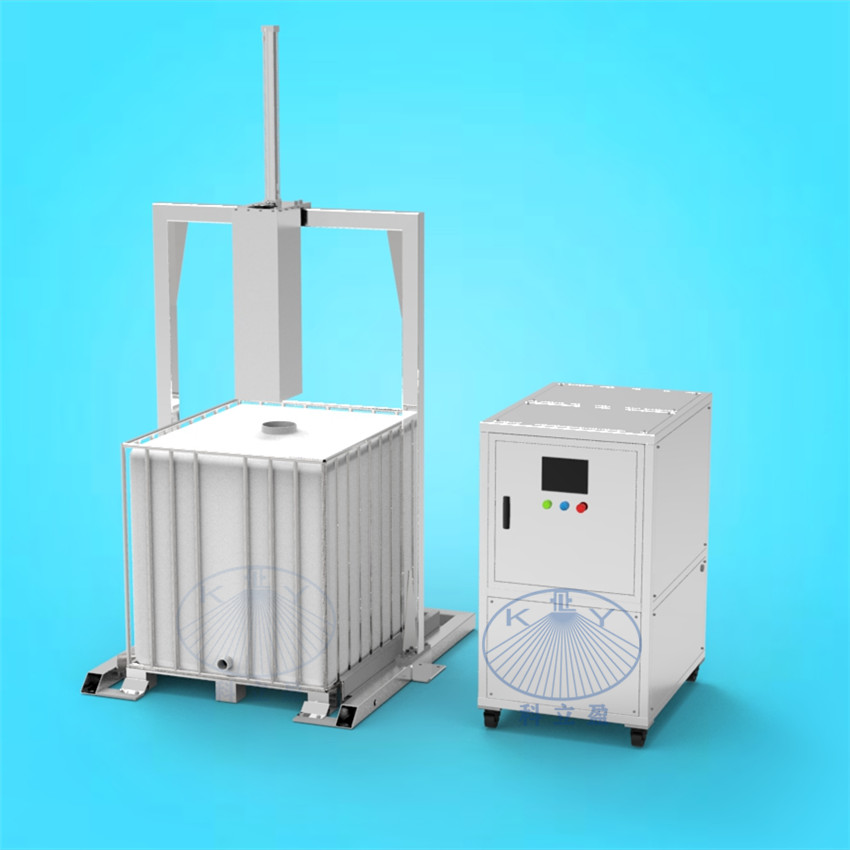

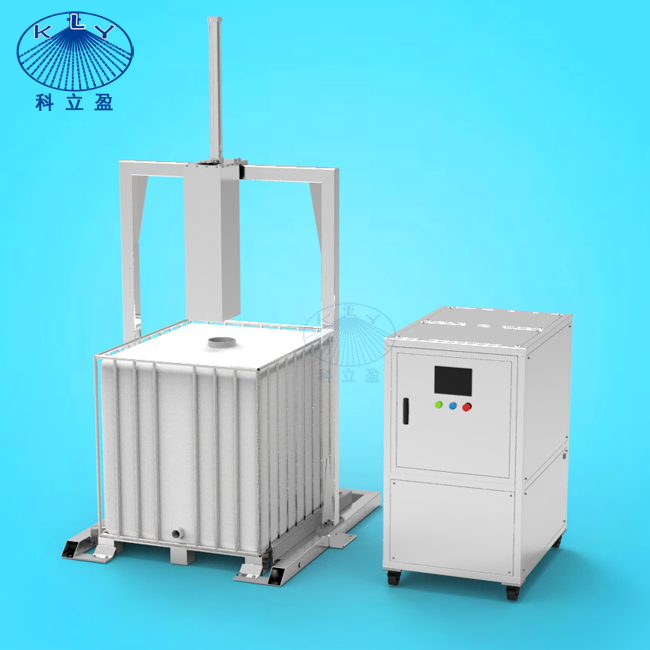

    Product photo of ibc cleaning system:

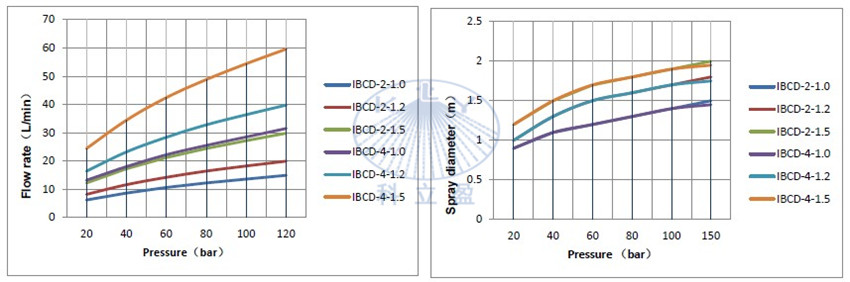

    Performation data of ibc tote cleaning nozzle:



    Cleaning effect of tote cleaning station:








    Exibition photos:



Last：Automatic tank cleaning systems,fermentation tank cleaning equipment Last：High Pressure IBC Tote Cleaning Machine | Trolley IBC Tote Washer

Recommended 推荐内容

Related products 产品

Contact Information
TEL: +86 02036269566
Fax: +86-020-36269969
Mob: +86 13725126489
E-mail: fiona@cleanspraying.com
E-mail:
E-mail:
Address: No.5,Nanling Industrial Zone, Longgui, Taihe Street,Taihe Town, Baiyun District, Guangzhou, 510445 Guangdong, China

Automated washing vs manual washing

●Improvement of the washing process: less time, less consumption and better and more reliable quality. The washing procedures can be inserted into the company quality system.
●safety of operators at the workplace.
●Need to reduce unskilled labor(KELIYING automatic washing machine : 2 to 5 minutes).
●Economic need to reduce the waste produced.
●Economic need for the reduction of the washing fluid in purchase.
●Increased washing quality.
●Increased control and measurement of production levels.

KELIYING vs other washing machines

●Highest quality Tank cleaning nozzles:KELIYING offers tank cleaning nozzles with 5 to1500 bar pressure for container or tank volume of 0.1 cubic to 10000 cubic meters.
●Customized Tank Cleaning and tank washing equipment products:We offer a total solution by providing onsite surveys, analysis, design, and engineering support for tank cleaning projects.
●Washing tests and consulting:Suitable machine configuration (type of pump and recommended options) to optimize consumption and achieve the required production quota.
●Service:"On-line" support and remote assistance also thanks to step-by-step video tutorials that allow the customer to perform maintenance activities.
