KLY 200L automatic industrial drum cleaning machine

Design features of drum cleaning machine :

This complete 200L barrel washer utilizes our rotary impingement technology, designed to blast residues from the barrel & drum. The tank cleaning machine is able to clean inside of containers thoroughly in a precise and global indexing pattern.

We 100% guarantee that cleaning technology can thoroughly clean the entire barrel in the most efficient manner, utilizing the least amount of resources including time, energy, and cleaning fluid.

The barrel washer comes equipped with everything you need to set up a barrel cleaning system.

It comes equipped with low pressure or high pressure cleaning nozzle according to the application.

Cleaning technology description
Operation demonstration: align the cleaning nozzle and put it into the bucket to be cleaned. There will be fixed jackets on both sides to fix the bucket body, and the cleaning cycel time is 30s-4 minutes (the time can be adjusted according to the working conditon), and operating pressure can be adjusted from 3-150 bar. There are two modes that can be adjusted according to the cleaning situation:
1. Low pressure cleaning modes, 3-20 bar pressure.
2. High-pressure cleaning modes, 80-150 bar pressure
3. Hot water detergent low pressure mode. This mode is aimed at oily barrels, first spray with detergent and then wash with 5-10 bar pressure.
4. Hot water detergent high pressure mode. This mode is aimed at petrolatum barrels, first spray with detergent and then clean with hot water of 40-50 degrees in 150 bar pressure.
5. Cleaing drum with solvent

Benefits
Fast: Clean any barrel in 1-4 minutes
Clean the entire drum, including the top and corners
Powerful: Clean a variety of residues
Affordable: A fraction of the cost of CIP tank cleaning systems

Residues:
Any and all including:
Paints, adhesives, chemicals
Petroleum products
Food and beverages products and ingredients
Pharmaceutical products and ingredients
Personal care products and ingredients products
And many more.

Common application:

In all industries:

• barrel

• drum

• vats

• buckets

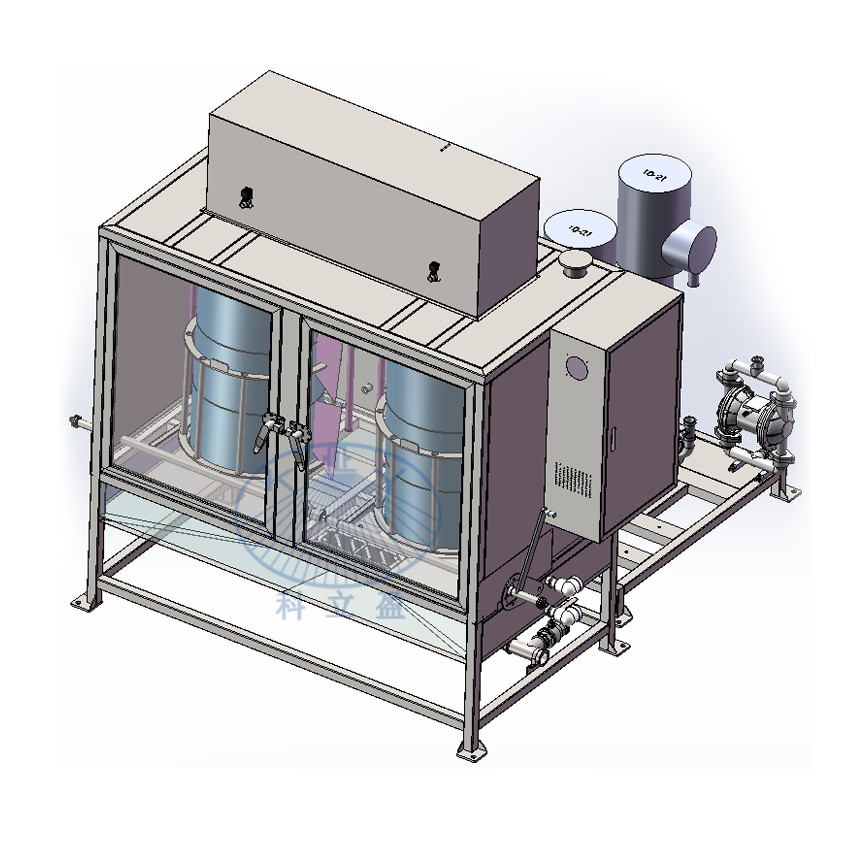

Photo photo of drum cleaning machine :

Cleaning effect of KLY barrel & drum cleaning machine:

                        Before cleaning                                           After cleaning

Application:

It is the ideal cleaning equipment for barrel washing.

In the process of cleaning, the 3D rotating high-pressure tank washer not only meets the requirements of thorough cleaning, but also reduces the consumption of resources.

Safety, eco-friendly and helps for the sustainable development.
