Railcar Tank Car Cleaning systerm
Tip: click the picture to enlarge.

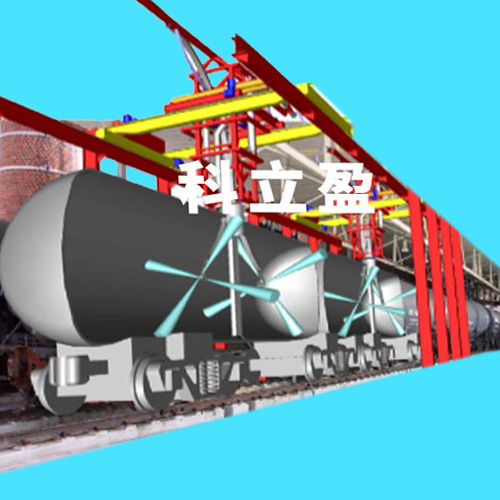

Railcar Tank Car Cleaning systerm
The TTCS series of automatic cleaning systems for railway tank cars are suitable for cleaning all types of train tank cars. It is difficult to clean the confined space of railway tank cars, and many safety hazards have troubled many users. For this reason, Keliying provides this set of professional tank car cleaning systems to achieve automatic cleaning according to the cleaning needs of cooperative customers. The cleaning process of railway tank cars includes four processes: removing residual oil, washing, blowing and drying, post-processing and quality inspection. Keliying's railway tank car high-pressure water railway tank car automatic cleaning system consists of a high-pressure cleaning system, a three-dimensional tank washer and a feeding mechanism, a traction device, a control operating system, etc., which can achieve all-round cleaning of closed containers. After running for multiple cycles, there is no dead corner in the tank cleaning. Equipped with a "lifting and opening" mechanism, high-pressure cleaning in the tank can be completed at a close distance. All loose rust in the tank can be cleaned up, and more than 96% of the rust in the tight layer can also be cleaned up. The tank will not rust again for at least 5 to 10 days after cleaning. (Click to view case: Railway tank car automatic cleaning "reuse and transformation" successfully completed)
Rail tanker cars are able to transport a variety of products, but operators must thoroughly clean them between uses. Tanker companies rely on industrial rail tank car cleaning equipment to complete this process. Cold water flushing is one option; however, using Keliying rail tank car cleaning equipment to clean rail cars is generally quicker and more effective than other methods.
At KELIYING Corporation, we manufacture turnkey rail tank car cleaning equipment. Our products are efficient,safe and durable, providing years of dependable service.
The TTCS series of automatic cleaning systems for railway tank cars are suitable for cleaning all types of train tank cars. It is difficult to clean the confined space of railway tank cars, and many safety hazards have troubled many users. For this reason, Keliying provides this set of professional tank car cleaning systems to achieve automatic cleaning according to the cleaning needs of cooperative customers. The cleaning process of railway tank cars includes four processes: removing residual oil, washing, blowing and drying, post-processing and quality inspection. Keliying's railway tank car high-pressure water railway tank car automatic cleaning system consists of a high-pressure cleaning system, a three-dimensional tank washer and a feeding mechanism, a traction device, a control operating system, etc., which can achieve all-round cleaning of closed containers. After running for multiple cycles, there is no dead corner in the tank cleaning. Equipped with a "lifting and opening" mechanism, high-pressure cleaning in the tank can be completed at a close distance. All loose rust in the tank can be cleaned up, and more than 96% of the rust in the tight layer can also be cleaned up. The tank will not rust again for at least 5 to 10 days after cleaning. (Click to view case: Railway tank car automatic cleaning "reuse and transformation" successfully completed)
Principle of Railcar Tank Car Cleaning systerm
The railway train tank car automatic cleaning system is used for cleaning of closed tanks: Its main working principle is to control the opening of the water pump and the control of each valve and the action control of each mechanism through an intelligent control system, and use the cleaning solvent of the water inlet pipe to drive the cleaning nozzle of the three-dimensional tank washer to perform three-dimensional, blind-spot-free coverage on the tank for cyclic cleaning. Features and advantages of the automatic cleaning system for railway tank cars
1. Perfect safety protection measures during mechanical cleaning to eliminate safety threats caused by tank unloading;
2. The mechanical cleaning system is an integrated fully enclosed type to avoid multiple openings and exhaust gas leakage; the degree of mechanization is high, less manpower is invested, and personnel are prevented from working in harsh environments for a long time;
3. The mechanical cleaning time is short, the tank mouth time is short, and the tank downtime is reduced;
4. Oil and water can be separated, and sewage is treated after separation;
5. After general washing/special washing, it meets the acceptance standards, the cleaning effect is good, and the crude oil recovery rate is high after oil and water separation;
6. Mechanical cleaning does not discharge oil pollution outside the oil tank. The recovered crude oil is transferred to the critical tank after filtration. The generated sewage is treated by the oil-water separation device, the residual oil is recovered, and the sewage and dirt are treated to the emission standard value before being discharged;
