MMD motor driven tank washing machine

 Tip: click the picture to enlarge.


    MMD motor driven high pressure cleaner

    This MMD series high pressure cleaner is a highly versatile machine and is applicable in most all types of tanks for process, storage, and transportation. It can be used a portable unit or permanently mounted.



    Working Principle:


      The MMD high pressure cleaner is driven by an external motor to drive the cleaning head to rotate,
      and the gear mechanism runs according to the preset trajectory to realize revolution and rotation,
      thereby realizing 360 degrees for the cleaning of the inside of tanks and process vessels.




    Features & Benefits:



     ● High Using dynamic seal at leakage point to reduce leakage (less than 3% leakage). thus saving cleaning fluid.

     ● The nozzle have a unique steady flow design which can make the jet be more concentrated and have greater impact.
     ● Driven by external motor, thereby reducing the pressure loss of water flow, and resulting in higher water impact.
     ● Conpact built. It is ideal for small opening to 45mm.
     ● High Maximum pressure up to 200 bar.

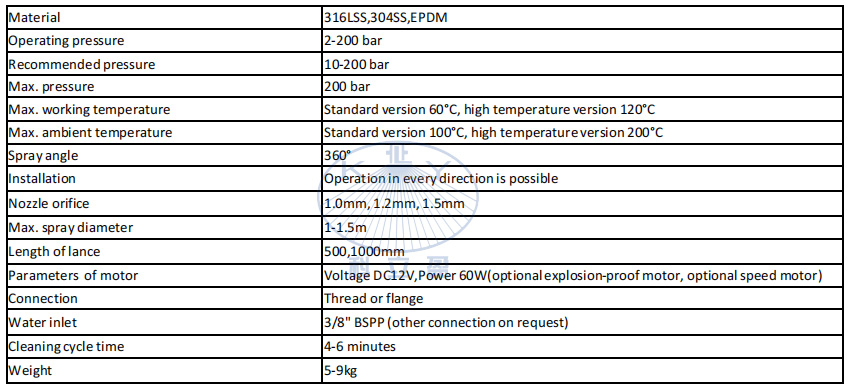

    Technical Data:

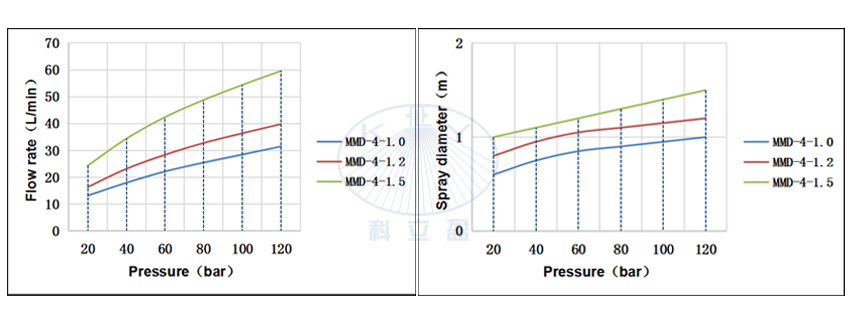

    Performance:

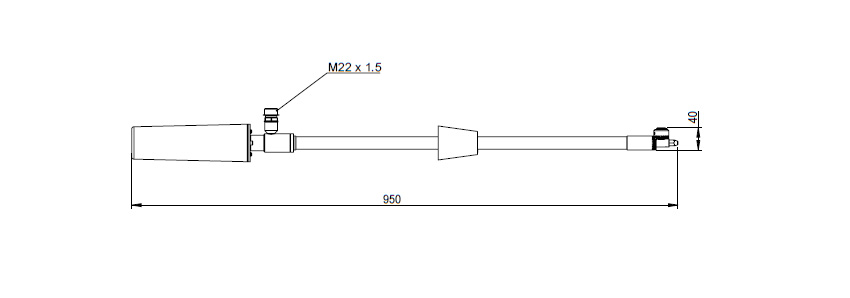

    Dimensions:

    Cleaning Effection ( Before & After ):


    Application:

    This MMD series high pressure cleaner is a highly versatile machine and is applicable in most all types of tanks for process, storage,
    and transportation. It can be used as a portable unit or permanently mounted.  Eg: in food industry, beverage industry, pharmaceutical industry and chemical industry, etc.
